Pneumatic Paint Sprayers Z-SPRAY
Pneumatic Paint Sprayers

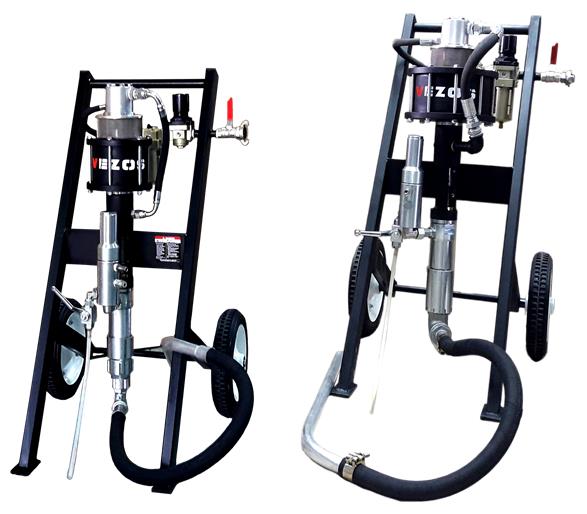

Z-SPRAY Air Operated Pneumatic Pumps
VEZOS Pneumatic pumps Z-SPRAY are suitable for all protective coating jobs, designed for the toughest tasks, reducing downtime and repair cost due to an easy maintenance system. Z-SPRAY pumps are light weighted, making these pneumatic pumps easy to transport and maneuver around the site / vessel.
VEZOS has been providing marine solutions since 1970, gaining the know-how of the industry over the years. When designing the Z-SPRAY range, the VEZOS engineering team kept in mind a serious issue that concerned it users - the units size.
Z-SPRAY pumps focus on easy transportation in and around the job site, making it possible for shipping companies to transport the pump to their vessels by air freight when needed. The power of the airless pump allows multiple users and long paint hoses without loosing the strength of the sprayer.
- Applications
Marine / ship maintenance
Roof coatings
Railcar & transport vehicles
Bridge construction/ maintenance
Off-shore platforms
Container manufacturing / maintenance
- Materials
Heavy VOC Paints
Epoxy / Solvent based
Block filers / Waterborne
Rubberized / Elastomeric
Latex / Primers
- Features
Powerful air motor
Anti-freeze design
Built-in filter
Heavy duty cart
Pressure adjustment
Slow stroke pump 70mm
Hard chrome pump
Removable suction hose
Large industrial wheels
| Sprayer Series | Z-SPRAY | Z-SPRAY | Z-SPRAY |
| Part Number | 23.1002800 | 23.1002835 | 23.1002801 |
| Max. Pressure | 175 bar/17.5 mpa | 210 bar/21.0 mpa | 280 bar/28.0 mpa |
| Fluid Pressure Ratio | 25:1 | 30:1 | 40:1 |
| Displacement Pump | 67cc | 67cc | 67cc |
| Weight | 44 kg | 46 kg | 57 kg |
| Sprayer Series | Z-SPRAY | Z-SPRAY |
| Part Number | 23.1002836 | 23.1002837 |
| Max. Pressure | 343 bar/34.3 mpa | 476 bar/47.6 mpa |
| Fluid Pressure Ratio | 50:1 | 68:1 |
| Displacement Pump | 67cc | 67cc |
| Weight | 59 kg | 65 kg |
