HYDREX HYDRAULIC PISTON PAINT PUMPS
Back to: Fluid Pumps

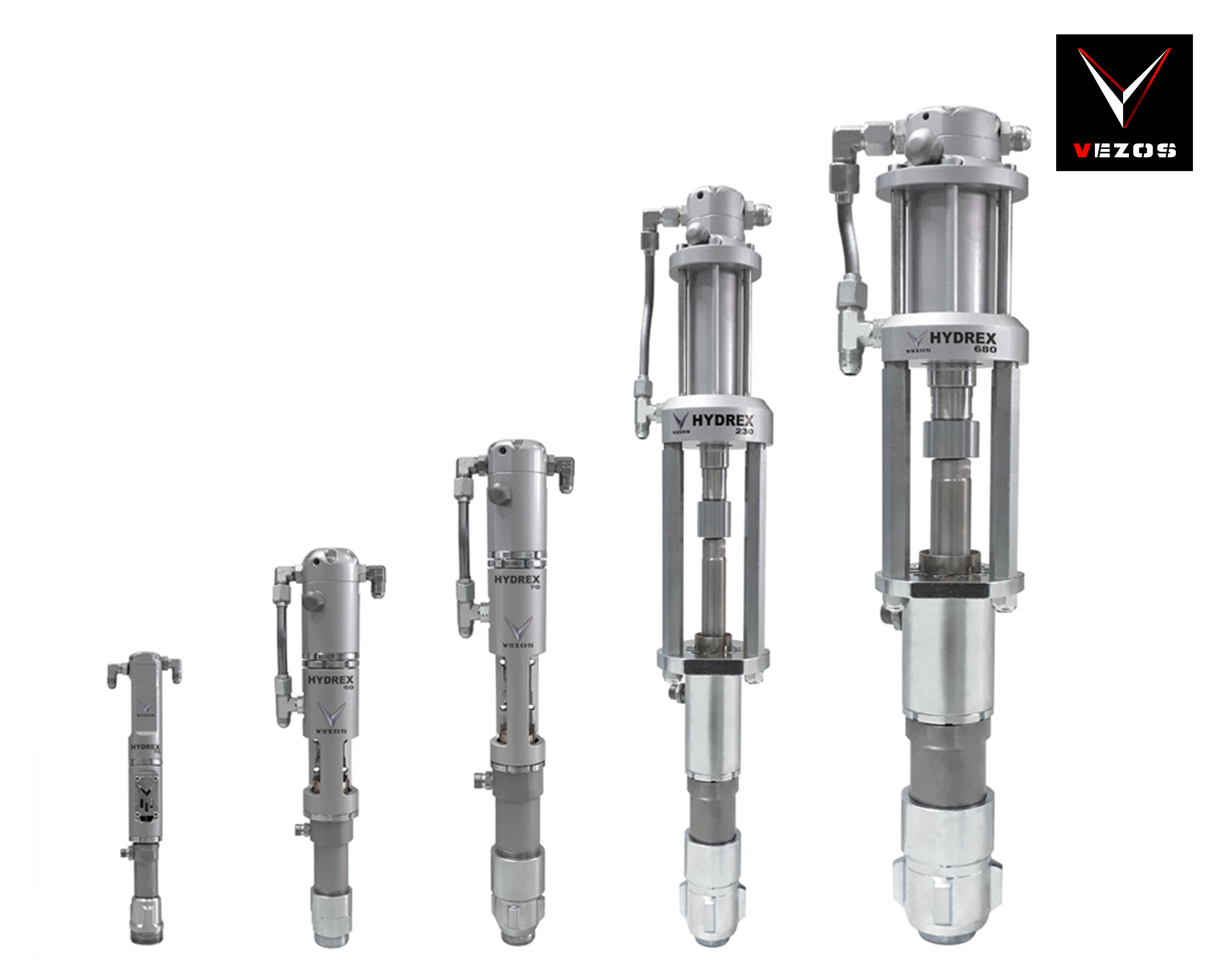

HYDREX Hydraulic Piston Paint Pumps

SKU: 97.1005401  /  Product Availability: Yes  /   Manufacturer: VEZOS

HYDREX High performance fluid pumps are available in six models serving the construction and road marking industry.
HYDREX robust hydraulic fluid pumps have a heavy duty design, ensuring long working life, equipped with a large stroke for increased durability and higher suction power. HYDREX Pumps are ideal for high viscosity materials and long operation hours.


Get Price Online Catalog Video



HYDREX HYDRAULIC PAINT PUMPS

Road marking applications:

Build your own road marking truck with VEZOS HYDREX pumps.
Heavy duty structure, multiple gun delivery, long stroke design for increased durability, high suction power.
Ideal for outdoor & continuous operation.

Industrial & factory coatings:

Indoor factory and painting plant coatings. Quiet & energy saving operation.
Designed for simultaneous gun supply coatings.
Ideal for high viscosity paints, epoxy primers

Construction Painting:

Tested on over 40 airless paint sprayer models! High delivery flow.
Large inlet valves for best handling with heavy materials, easy release pump connections for on the spot service.

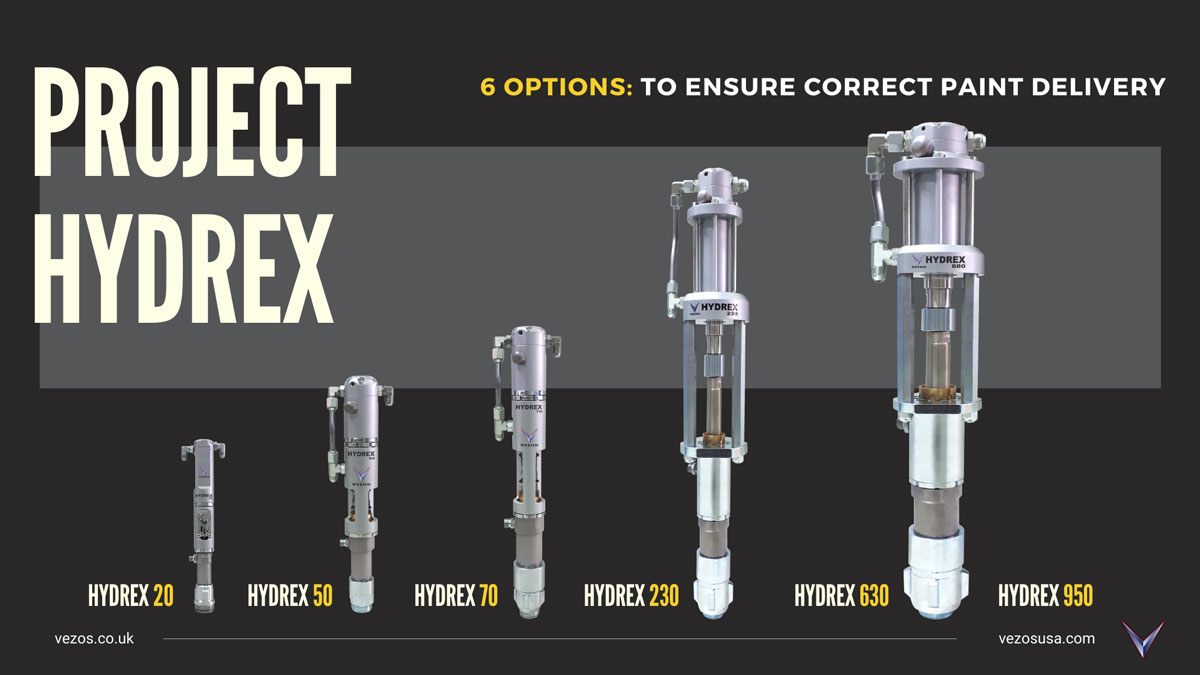

 HYDREX PUMPS 2021

HYDREX 20

One of a kind! Hydraulic 20cc pump 2" stroke for complex combinations & MMA executions.

Part No.
Fluid pressure ratio
Fluid input pressure
Fluid output pressure
Oil flow (max)
Fluid flow (max)
Stroke length

97. 1005339
1.45: 1
155 bar / 2250 psi
255 bar / 3300 psi
4.5 l/m - 1.2 g/m
3.0 l/m - 0.8 g/m
2" - 50mm


HYDREX 50

Hydraulic 50cc pump 2" stroke, ideal for line striping modules & medium coating applications.

Part No.
Fluid pressure ratio
Fluid input pressure
Fluid output pressure
Oil flow (max)
Fluid flow (max)
Stroke length 		  97. 1005400
1.82: 1
150 bar / 2175 psi
273 bar / 3960 psi
12 l/m - 3.2 g/m
6.5 l/m –1.7 g/m
2" - 50mm



HYDREX 70

Hydraulic 70cc pump - 3" slow stroke design, multiple gun operation for line marking modules.

Part No.
Fluid pressure ratio
Fluid input pressure
Fluid output pressure
Oil flow (max)
Fluid flow (max)
Stroke length

97. 1005401
1.82: 1
150 bar / 2175 psi
273 bar / 3960 psi
17.5 l/m - 4.6 g/m
9.5 l/m –2.5 g/m
3" - 75mm



HYDREX 230

19 liters per minute material flow, 5.5" stroke. Carbon steel - Hard Chromed - 220 bar output pressure.

Part No.
Fluid pressure ratio
Fluid input pressure
Fluid output pressure
Oil flow (max)
Fluid flow (max)
Stroke length

97. 1005402
1.45: 1
150 bar / 2175 psi
220 bar / 3190 psi
28 l/m –7.4 g/m
19 l/m –5 g/m
5.5" - 140mm



HYDREX 630 PowerMax

King of Kings! 5.5" stroke length. Fluid pressure ratio1:1, 37.8 lpm (10 gpm) fluid delivery.

Part No.
Fluid pressure ratio
Fluid input pressure
Fluid output pressure
Oil flow (max)
Fluid flow (max)
Stroke length

97. 1005403
1: 1
170 bar / 2470 psi
170 bar / 2470 psi
37.8 l/m - 10 g/m
37.8 l/m –10 g/m
5.5" - 140mm



HYDREX 950 PowerMax

56.8 lpm (15 gpm) 1:1 fluid pressure ratio, 170 bar (2470 psi). Carbon steel - SST, ideal for long line marking truck applications.

Part No.
Fluid pressure ratio
Fluid input pressure
Fluid output pressure
Oil flow (max)
Fluid flow (max)
Stroke length

97. 1005404
1: 1
170 bar / 2470 psi
170 bar / 2470 psi
56.8 l/m - 15 g/m
56.8 l/m –15 g/m
5.5" - 140mm



Brochures

vezos-brochures Download: VEZOS HYDREX HIGH PERFORMACE PISTON PUMPS
