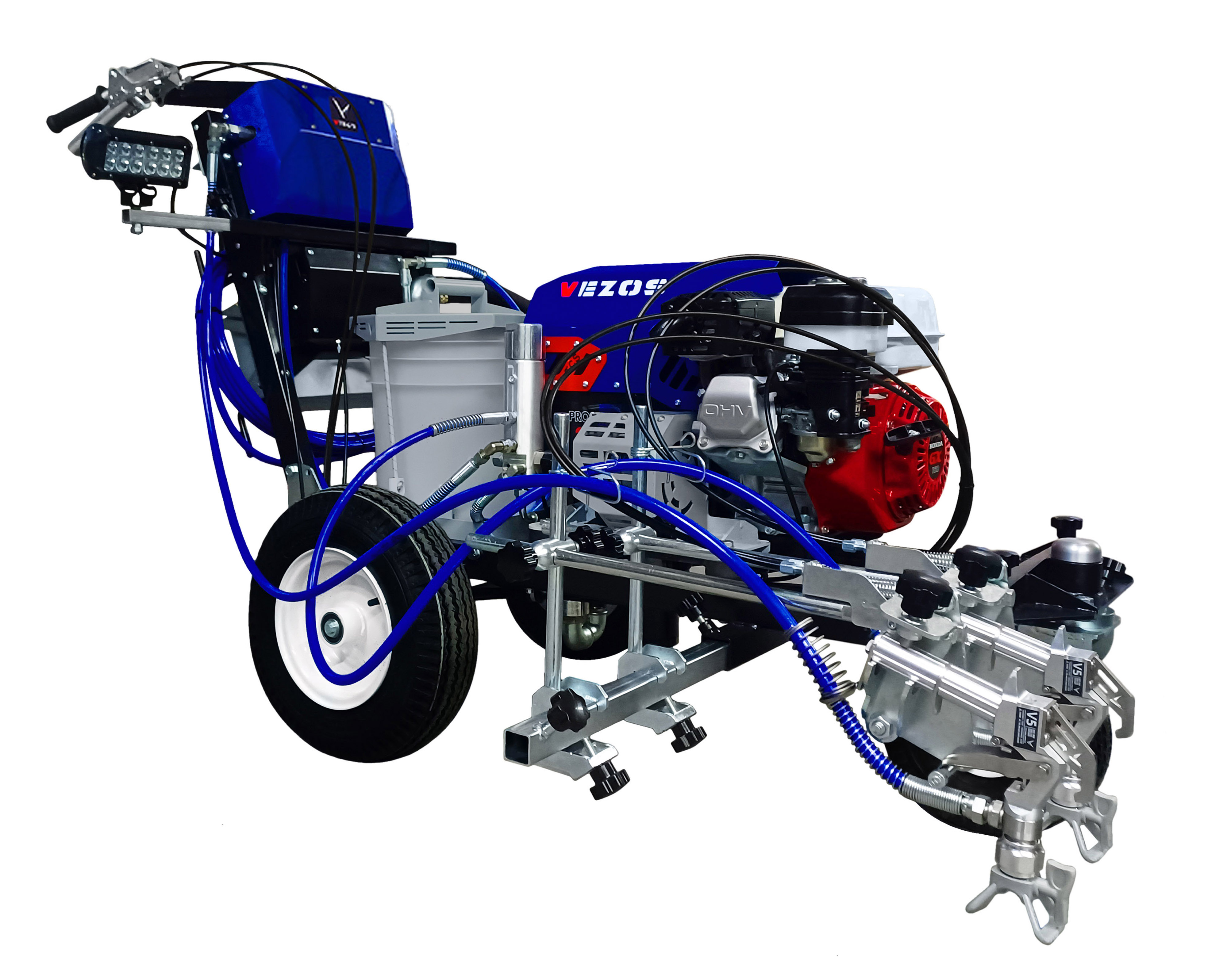

Walk Behind Line Striper PROSTRIPE 200 WB - Manual Paint Gun Operation
SKU: 23.9017410 / Product Availability: Yes / Manufacturer: VEZOS
When it comes to parking lot striping and local pavement marking, contractors trust the PROSTRIPE 200 as their go-to choice. Powered by VEZOS' powerful slow stroke hydraulic pump, this machine operates at 230 bar pressure and 1.7 gallons per minute, delivering exceptional hydraulic power in every aspect of its performance.
Unmatched Stability and Precision
The PROSTRIPE 200 boasts the largest front swivel wheel in the industry, ensuring maximum stability and minimizing the risk of accidents. Additionally, its advanced anti-vibration system ensures perfect straight lines, even on the most uneven surfaces. This means you can rely on accurate and precise striping, every time.
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Walk Behind Line Stripers
FEATURES
- Powerful VEZOS slow stroke hydraulic pump
- 230 bar pressure and 1.7 gpm for optimal performance
- Largest front swivel wheel in the industry for added stability
- Advanced anti-vibration system for precise straight lines
- Enhanced electrical system with automotive type alternator
BENEFITS
- Improved accuracy and precision in parking lot striping and pavement marking
- Enhanced stability and reduced risk of accidents
- Increased productivity and efficiency with the PROSTRIPE 200's powerful hydraulic pump
- Multiple light kits powered by the unit's high-output automotive alternator
Add VEZOS 68 lit - 18 gal paint hopper & VEZOS 32 kg - 70 lbs vibrated assisted bead hopper
VEZOS Enhanced Electrical System allows you to add multiple lights or laser kits to your line striper, all powered by the unit's own output!
No more external batteries and extra components, as our HD automotive type generator and
battery can support up to 180 watt loads. With VEZOS, you'll have everything you need right at your fingertips!
Designed to provide reliable and consistent power, even in the toughest conditions.
Whether you're working with a laser in bright sunlight or with a light kit in complete darkness,
our system will deliver the performance you need.
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 50
√ Slow stroke 6.5 lit/min - 1.7 gal/min delivery
√ Built in filter
MANUAL GUN OPERATION
√ Electric paint gun actuator
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stenciling
OPERATION CONSOLE PS 200
√ Engine throttle
√ Engine & system ON/OFF
√ Pressure gauge
√ Hand brake
√ Cup holder
EXTRA FEATURES
√ Anti-vibration control
√ T.C.S cooling technology
√ 5 gallon plastic paint bucket
√ Steel secure bucket lid (fits on all US-EU paint buckets)
√ Hydraulic oil reservoir 2.5 gal & oil level indicator
√ Storage compartment (1.4 gal capacity, easy reach)
√ Enhanced electrical system (automotive type alternator)
√ Fully adjustable steering bar (height, width, grip inclination)
OPTIONAL ADD-ONS
√ Re-striping pointer
√ Paint hopper (18 gal)
√ Gravity glass bead system (70 lbs)
√ LINEMATIC system (automatic operation)
√ Light kit bracket (led, strobe, halogen etc.)
| MODEL | PROSTRIPE 200 | PROSTRIPE 200 | PROSTRIPE 200 |
| MANUAL | MANUAL | MANUAL + PRODRIVE | |
| Material delivery (max) gpm | 1.7 | 1.7 | 1.7 |
| Material delivery (max) lpm | 6.5 | 6.5 | 6.5 |
| Working pressure (max) psi | 3350 | 3350 | 3350 |
| Working pressure (max) bar | 230 | 230 | 230 |
| Type | walk-behind | walk-behind | walk-behind |
| Engine | 5.5 HP | 5.5 HP | 5.5 HP |
| Engine Type | HONDA GX160 | HONDA GX160 | HONDA GX160 |
| Pump | HYDREX 50 | HYDREX 50 | HYDREX 50 |
| Color - Pump | 1 color | 1 color | 1 color |
| Gun setup | 1 | 2 | 2 |
| System - Operation | Manual | Manual | Manual |
| Dimensions (striper) in | 47x31.5x47 (h) | 47x31.5x47 (h) | 47x31.5x47 (h) |
| Dimensions (striper) cm | 120x80x120 (h) | 120x80x120 (h) | 120x80x120 (h) |
| INCLUDES: | |||
| Paint gun | 1 | 2 | 2 |
| Guard | 1 | 2 | 2 |
| Tip | 1 | 2 | 2 |
| Driver SP | - | - | included |
| Controller | - | - | - |
| Part Number | 23.9017410 | 23.9017411 | 23.9017411PD |
| Optional Add-ons: | |||
| Paint hopper 18 gal | 23.9214000 | 23.9214000 | 23.9214000 |
| Glass bead system gravity 70 lbs | 23.9224300 | 23.9224322 | 23.9224322 |
| Pointer | 23.7002204 | 23.7002204 | 23.7002204 |
