Hydraulic Self-Propelled Line Stripers PROSTRIPE
Hydraulic Line Stripers - Road Marking Machines
PROSTRIPE Hydraulic Self Propelled Line Stripers
VEZOS PROSTRIPE hydraulic self-propelled line stripers combine the know-how of the brands engineering team and their aim to set new trends to the road marking industry.
- Unique Features
Motorcycle motion control
Easy gun selector
Easy top sided alignment
1 or 2 hydraulic pumps
Disk lock brake system
Double method ride along seat (sit/stand)
Vibrated assisted glass bead hopper
T.C.S Cooling technology
Foldable chassis
Skip-Line road marking controller
- Applications
City roads
Highway line striping
Local road marking
Large construction sites
Parking Lots
|
Self-Propelled Hydraulic Line Stripers |
||
| Part number | 23.9008110 | 23.9008140 |
| Prostripe edition | PS 300 SP 1 G | PS 400 SP 1 G |
| Prostripe category | Self - Propelled | Self - Propelled |
| Max working pressure | 240 bar/3500 psi | 240 bar/3500 psi |
| Max flow | 8.5 l/min | 12 l/min |
| Motor power HONDA | 8.4 hp net | 11.7 hp net |
| in accordance SAE J1349 | 9.0 gross | 13.0 gross |
| Paint gun -1 | 1 piece | 1 piece |
| Paint gun -2 | Optional | Optional |
| Adjustable handle | Included | |
| Pointer 55cm | Accessory | Included |
| Bead dispenser | Accessory | Accessory |
| Paint hopper (extra) | 68lt - 18gpm | 68lt - 18gpm |
| FlipDrive seat | Accessory | Accessory |
Hydraulic Walk-behind Line Stripers PROSTRIPE
Line Striping Machines
PROSTRIPE Hydraulic Walk-behind Line Stripers
PROSTRIPE hydraulic line stripers are contractor’s choice for those most demanding jobs. Equipped with VEZOS slow stroke hydraulic pump and Tunnel Cooling System that will never let you down. VEZOS PROSTRIPE walk behind line stripers are powered by HONDA GX engines, unique features and new technology standards.
- Rear Gun & Bead Hopper
Simple, no tools required, turn the hopper around and place the guns on the rear end of the striper for stable long lines.
Important : VEZOS unique vibrated assisted bead hopper, provides a smooth & gradual release of the glass beads, during operation.
- Foldable Chassis
VEZOS innovative designs! IT FITS EVERYWHERE.
Pass with ease the ProStripe through any standard doorway, store it in your business, garage or warehouse without taking up the entire space and finally fit the PROSTRIPE in any small city van or even Station Wagon that you may own, without having to bring it to parts, due to its foldable design.
- Applications
City roads
Local junctions
Garage & Parking Lots
School & Athletic fields marking
Property maintenance
Sign traffic stenciling
|
Walk Behind Hydraulic Line Stripers |
||
| Part number | 23.9008100 | 23.9007410 |
| Prostripe edition | PS 300 1 GUN | PS 200 1 GUN |
| Prostripe category | Standard | Basic |
| Max working pressure | 240 bar/3500 psi | 240 bar/3500 psi |
| Max flow | 8.5 l /min | 6.5 l /min |
| Motor power HONDA | 5.8 hp net | 4.8 hp net |
| in accordance SAE J1349 | 6.5 gross | 5.5 gross |
| Paint gun -1 | 1 piece | 1 piece |
| Paint gun -2 | Optional | Optional |
| Adjustable handle | Included | Included |
| Pointer 55cm | Accessory | Accessory |
| Bead dispenser | Accessory | Accessory |
| Paint hopper (extra) | 68lt - 18gpm | 68lt - 18gpm |
| FlipDrive seat | n/a | n/a |
Industry's First Line Striping Kit - R LinePack - Exclusive Design Vezos
How it works:
VEZOS has designed the first line striping kit, allowing contactors
to take on small line striping projects such as parking lots and local
road and playgrounds, without needed to purchase an additional
machine.

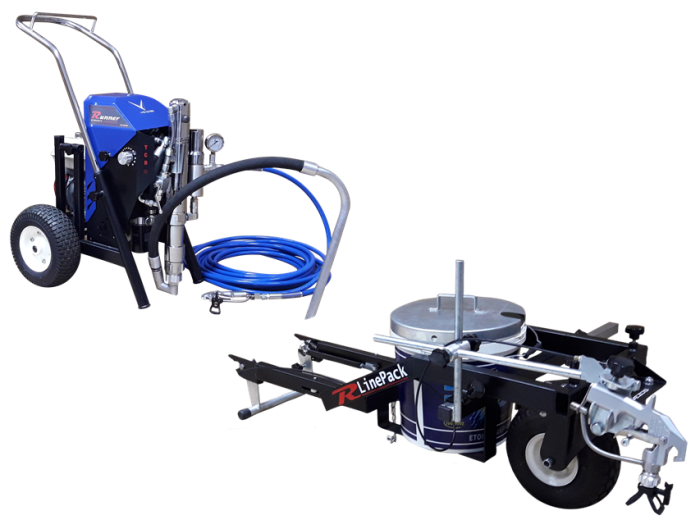

The R-LinePack striping kit, has a simple no tool connection design.
Connect the Runner Airless by rolling the unit to the R‐LinePack,
the striping kit accessory will click into place.Secure with the foot break.
Attach the steering / spraying control on the main units handle.
Adapt the airless spray gun to the holder.
The R‐LinePack has transformed the Runner into a hydraulic line striping machine, saving its user the cost of an additional unit.
NO TOOLS REQUIRED
See demonstration video: https://www.youtube.com/watch?v=Y2d6LdM0OUA
Transform your business - Success Story
 |
 |
| Supporting our end-users is VEZOS main aim, offering contractors a solution when they believe that one is not possible, is our reward.

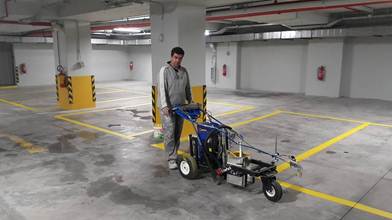

Costas is a painting contractor, focused on industrial & housing projects. He always assigned a sub-contractor to perform the line marking in parking lots, until he was referred to VEZOS innovative solutions. The project that he had booked was to insulate & paint a mall’s parking lot and further on the re-mark the parking area (600 square meters x 3 floors). With the R-LinePack striping kit, Costas managed to perform all the line marking on his own, at a low cost and without the supply of a new machine. By transforming his airless into a line striper, he managed to transform his business = his profit. |
For more information visit: Line Striping Kit by Vezos - R LinePack
ProStripe Hydraulic Road-Line Marking by VEZOS
ProStripe Hydraulic Road Marking Sprayer by VEZOS
ProStripe Hydraulic Road Marking Sprayer is equipped with a high quality VEZOS hydraulic pump, ensuring gradual pumping speed, delivering perfect lines with better definition, for demanding & heavy duty applications.
Wide tracks for a non-bumping & steady root, vibrations reduction system, front swivel wheel with "Lock-up tech" & a reliable Honda engine.
1-2 Gun & Bead dispenser Kits are available.
Applications
Parking Lots
Intersections
Roadways
High-Speed Runways
Malls
Parks
Big Building Site
Airport Runways
